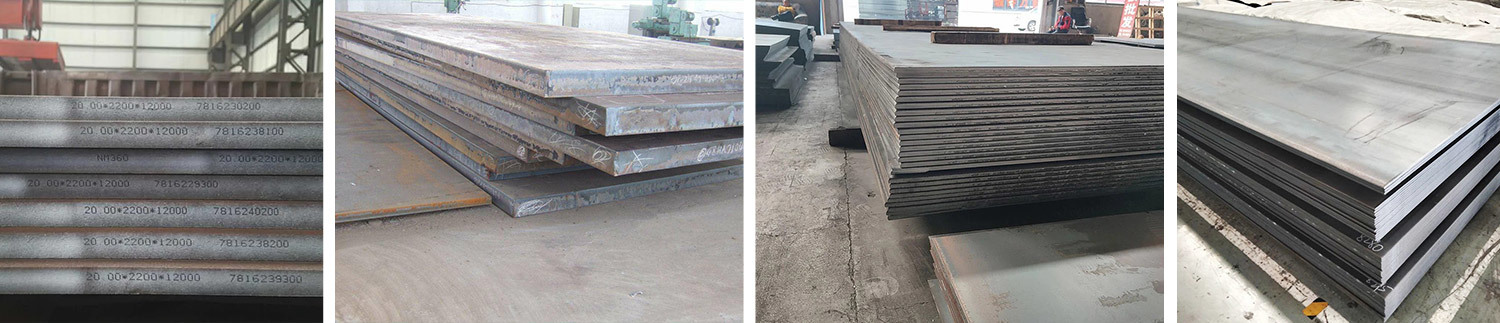

RINA Grade DH36 Marine Steel Plate

Classification :

RINA DH36 steel is a kind of hot rolled high tensile strength steel.
Higher-strength RINA shipbuilding steel comes in 12 grades of 3 strengths,
DH36 is one of the grades.
The RINA DH36 grade steel plates have yield strength of 315 MPa), and
ultimate tensile strength of 440-570 MPa.

Bella@zglcmetal.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Shipbuilding Steel Plate

Brief introduction of marine steel plate

Marine steel plate refers to structural steel used in ship building. It is considered a marine grade and must be able to resist corrosive effects that are common in a water environment. To achieve this, special alloying elements are added to these grades in order to defend agaist corrosion.While most carbon steel is not suited for marine environments, there are several marine grade carbon steels that have been approved by the different societies for shipbuilding applications.

Structural steel for ship hulls is divided into strength classes according to its minimum yield strength: general strength structural steel and high strength structural steel. Maine steel plate refers to hot rolled steel plate produced in accordance with the requirements of the classication society for the construction of ship hull structures.

There are 9 main classification societies in worldwide.
A.B.S    American Bureau of Shipping
B.V.     Bureau Veritas
C.C.S.   China Classification Society
D.N.V   Det Norske Veritas
G.L.    Germanischer Lloyd
K.R.    Korean Register of Shipping
L.R.    Lloyd’s Register of Shipping
N.K.    Nippon Kaiji Kyokai
R.I.N.A Registro Italiano Navale

RINA DH36 steel is a kind of hot rolled high tensile strength steel. Higher-strength RINA shipbuilding steel comes in 12 grades of 3 strengths,DH36 is one of the grades. The RINA DH36 grade steel plates have yield strength of 315 MPa), and ultimate tensile strength of 440-570 MPa.
RINA is a founding member of the International Association of Classification Societies(IACS),formed in 1968. The RINA fleet is recognized by approximately 116 international flag authorities. RINA integrated services for the complate shipping cycle including design, building, shipyard management, inspection and testing of materials/components and regular inspections to maintain the class are used by freight, ferries, ro-ro, passenger ships, yachts, cruise ships, navy, LGN and other specialist carrier vessels.

Grade AH36 steel is the impact force subjected to 0 ° C
Grade DH36 steel impact force at -20 ° C
Grade EH36 steel impact force at -40 ° C
Grade FH36 steel impact force at -60 ° C

Shot blasting service
Shot blasting is a method used to clean or polish steel when enhanced surface finishes are required. Shot blasting is used in almost every industry we serve. Especially in shipbuilding, rail,structural fabrication and more.

Specifications range
Thickness:2.5-120mm
Width:1000-3000mm
Length: As request

Chemical composition and mechanical properties

Chemical Composition

Steel grade	C	Si	Mn	P	S	Als
Grade AH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade DH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade EH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015
Grade FH36	≤0.18	≤0.50	0.9-1.6	≤0.035	≤0.035	≥0.015

Processing for Different Grades
Grade D, E (DH32, DH36, EH 32, EH 36)
Grade D and E series (inlcuding AH32/36, DH32, DH36, EH32, EH36) shipbuilding steel plates require good low temperature toughness and good welding performance. The production high-strength shipbuilding steel plate needs to be normalized by means of controlled rolling and controlled cooling or heat treatment processes with more complete equipment. At the same time, the internal steel purity of the supplied billets is required to be high, especially the content of S, P, N, 0 and H in the steel should be strictly controlled.

Alloy Elements Added to Improve Toughness
In order to ensure the performance of high-strength ship plates, micro-alloying technology is adopted. By adding Nb, V, Ti and other alloying elements to the steel, combined with the controlled rolling process, the grain is refined and the toughness is improved.
Direction of Development for Shipbuilding Plate
High strength, high specification, with the ship's large-scale and safety, and changes in coating specifications, the demand for ordinary A-class panels is gradually reduced, and the demand for high-strength panels is increasing, which is concentrated in large ships of 5m wide. Plate, 200-300mm thickness special thick ship board.

Mechanical Properties

Steel grade	Yield point/MPa	Tensile point /MPa	Elongation/%	Temperature/° C	V-type impact test
					Akv/J
					≤50MM	50-70MM	70-100MM
Grade AH36	≥355	490-630	≥21	0	34/24	41/27	50/34
Grade DH36	≥355	490-630	≥21	-20	34/24	41/27	50/34
Grade EH36	≥355	490-630	≥21	-40	34/24	41/27	50/34
Grade FH36	≥355	490-630	≥21	-60	34/24	41/27	50/34

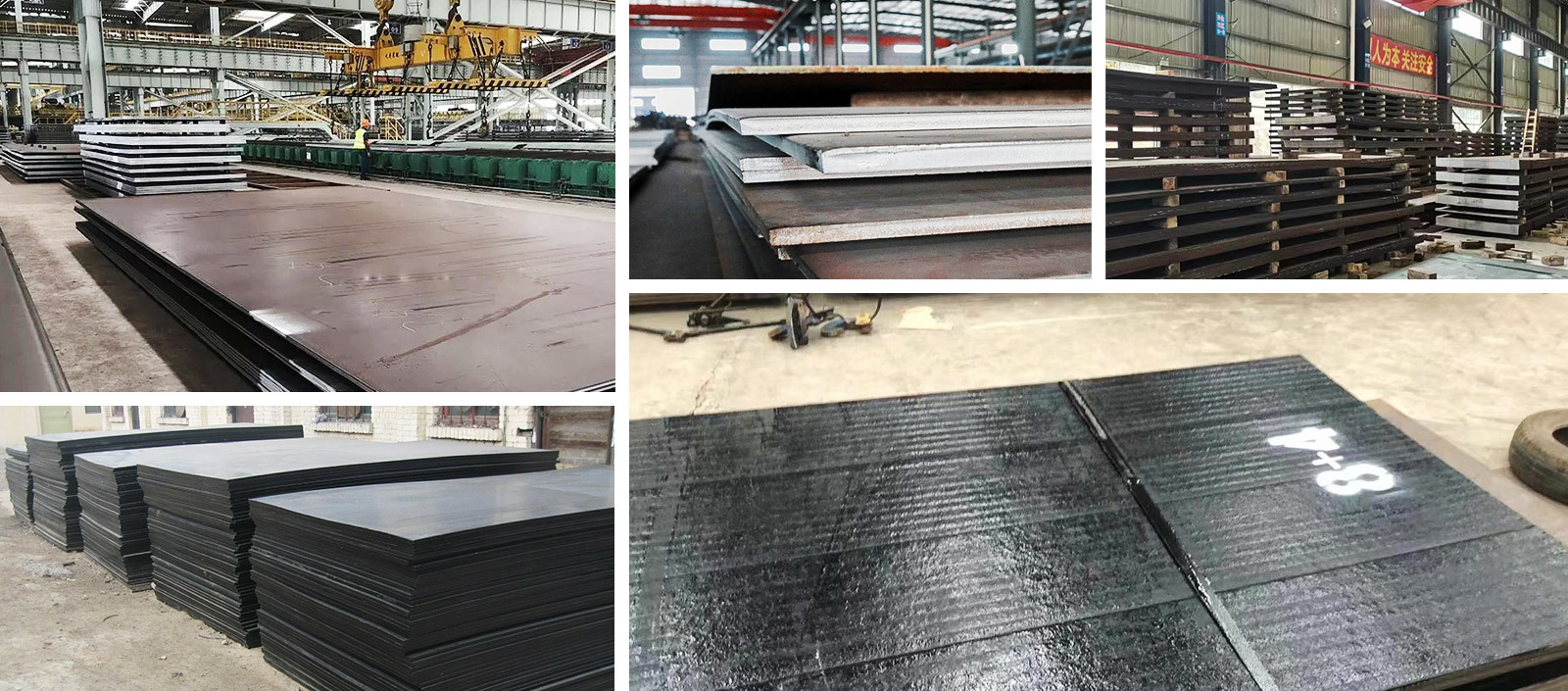

warehouse storage

The annual output of the factory is 400,000 tons, and the current inventory is more than 100,000 tons, which can greatly save the purchasing time of customers and ensure the production cycle and product quality of customers. We are a quality partner for domestic and foreign customers. At present, there are 14 steel production lines for processing, bending, coating, heat treatment, cutting, drilling, chamfering, conditioning, surface treatment and 13 sets of processing equipment.

Packing and shipping

Our main products are: carbon steel plate, carbon steel pipe, carbon steel coil, stainless steel plate, stainless steel coil, stainless steel profile, galvanized plate, galvanized coil, color coated steel coil, ppgi/ppgl and a wide range of high quality steel products.

Customer visit

Li Cheng (Shandong) Metal Materials Co., LTD. has the right to import and export, and its products are exported to more than 20 countries in Asia, Africa, Europe, North America and other regions. Complete processing equipment, perfect quality assurance system, well received by customers.We are willing to first-class technology, first-class equipment, first-class service wholeheartedly and friends from all walks of life sincere cooperation!

Cooperation Case

Applicable to construction, petroleum, chemical, electric power, metallurgy, urban gas, heat pipe network, Bridges, railways, vehicles, ships and other industrial fields and construction, infrastructure and other engineering fields. Complete testing equipment, strong technical force, can implement GB, ASTM, JIS, DIN and other standards.
