API 5L SSAW Welded Spiral Steel Pipe

Classification :

SSAW (Spiral Submerged-Arc Welded) Steel Pipes, also called HSAW pipe,
with welding seam in spiral(helix) type, can be manufactured in large diameter and length.

Bella@zglcmetal.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

Welded Steel Pipe

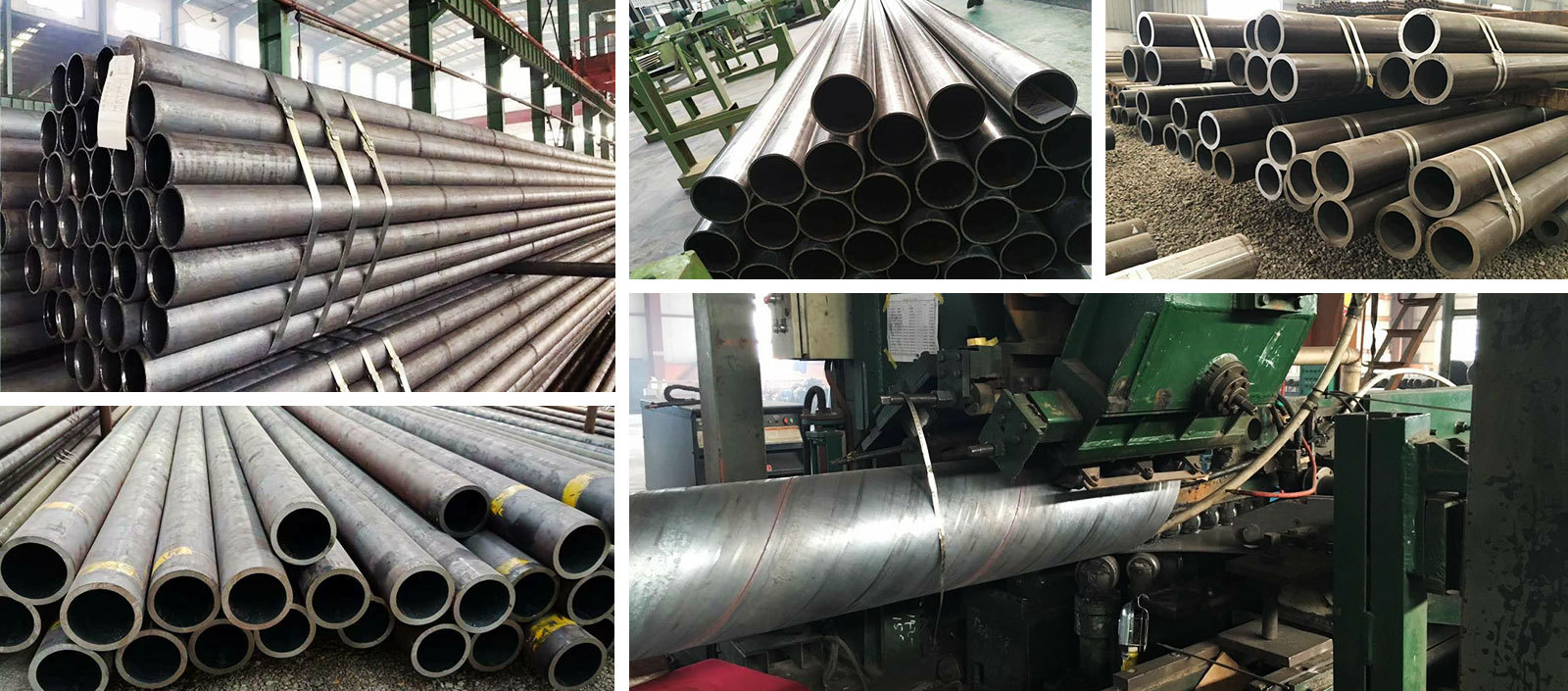

Product introduction

SSAW (Spiral Submerged-Arc Welded) Steel Pipes, also called HSAW pipe, with welding seam in spiral(helix) type, can be
manufactured in large diameter and length.

OD: 219-3660MM (8’’-144’’)
WT: 5-30mm
Length: 2-30m
Standard: API 5L, ASTM A252, ASTM A53, SY/T5037, SY/T5040, GB.T3091, BG/T9711, EN10217, EN10219, EN10224, EN10025
Material: API 5L GR.B, X42!X70, ASTM A252 GR.2, GR.3, A53-B, Q235B, Q345B, 16Mn, L245~L555, L275, L355, etc.

Standard	API 5L, GB/T9711,
Grade	Q235,Q345,B,X42,X52,X60,X65,X70
application	As conveyer pipe in the fields of petroleum , heat, and natural gas, construction pipe, ground piling pipe
Outside diameter	219-2420mm
Wall thickness	5.00-30.00mm
Length	6-20m
Technique	Double sides submerged arc welding steel pipe
Certificate	ISO9001:2008, API SPEC 5L
Package details	in bundles, case packing, or bulk pack

Technical data

Chemical Composition

API 5L	Steel Grade	C	Mn	P		S
API 5L	Steel Grade	Max	Max	Min	Max	Max
API SPEC 5L ISO 3183 GB/T 9711	PSL1
	A25/L175	0.21	0.60		0.030	0.030
	A25P/L175P	0.21	0.60		0.080	0.030
	A/L210	0.22	0.90		0.030	0.030
	B/L245	0.28	1.20		0.030	0.030
	X42/L290	0.28	1.30		0.030	0.030
	X46/L320,X52/L360,X56/390	0.28	1.40		0.030	0.030
	X60/L415,X65/L450,X70/L485	0.28	1.40		0.030	0.030
	PSL2
	B/L245	0.24	1.20		0.025	0.015
	X42/L290	0.24	1.30		0.025	0.015
	X46/L320,X52/L360,X56/L390	0.24	1.40		0.025	0.015
	X60/L415,X65/L450,X70/L485	0.24	1.40		0.025	0.015

Mechanical Properties
Standard

Class	Grade	Yield Strength MPa		Yield Strength MPa		Y.S/T.S
Class	Grade	min	max	min	max	max
API 5L ISO3183	PSL2	L245R or BR L245N or BN L245Q or BQ L245M or BM	245	450	415	655	0.93
		L290R or X42R L290N or X42N L290Q or X42Q L290M or X42M	290	495	415	655	0.93
		L320N or X46N L320Q or X46Q L320M or X46M	320	525	435	655	0.93
		L360N or X52N L360Q or X52Q L360M or X52M	360	530	460	760	0.93
		L390N or X56N L390Q or X56Q L390M or X56M	390	545	490	760	0.93
		L415N or X60N L415Q or X60Q L415M or X60M	415	565	520	760	0.93
		L450Q or X65Q L450M or X65M	450	600	535	760	0.93
		L485Q or X70Q L485M or X70M	485	635	570	760	0.93
		L555Q or X80Q L555M or X80M	555	705	625	825	0.93
		L625M or X90M L625Q or X90Q	625	775	695	915	0.95
		L690M or X100M L690Q or X100Q	690	840	760	990	0.97

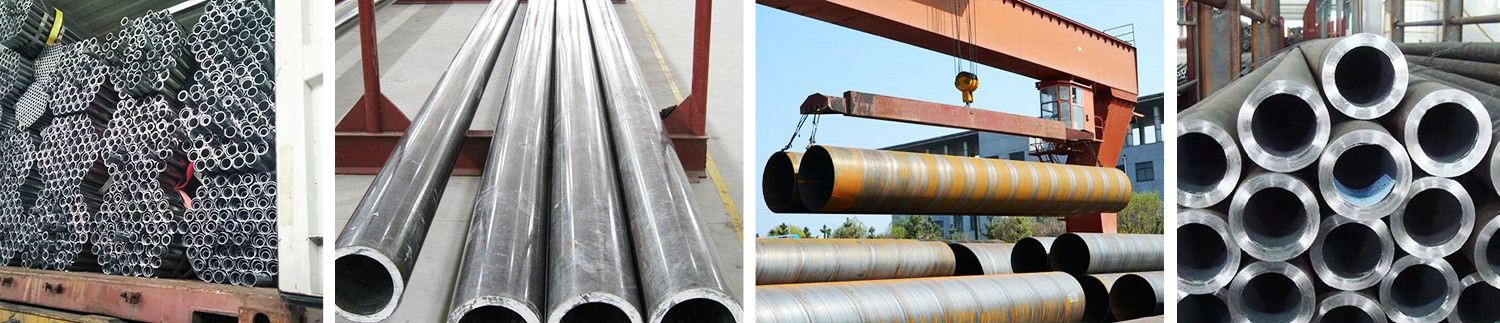

warehouse storage

The annual output of the factory is 400,000 tons, and the current inventory is more than 100,000 tons, which can greatly save the purchasing time of customers and ensure the production cycle and product quality of customers. We are a quality partner for domestic and foreign customers. At present, there are 14 steel production lines for processing, bending, coating, heat treatment, cutting, drilling, chamfering, conditioning, surface treatment and 13 sets of processing equipment.

Packing and shipping

Our main products are: carbon steel plate, carbon steel pipe, carbon steel coil, stainless steel plate, stainless steel coil, stainless steel profile, galvanized plate, galvanized coil, color coated steel coil, ppgi/ppgl and a wide range of high quality steel products.

Customer visit

Li Cheng (Shandong) Metal Materials Co., LTD. has the right to import and export, and its products are exported to more than 20 countries in Asia, Africa, Europe, North America and other regions. Complete processing equipment, perfect quality assurance system, well received by customers.We are willing to first-class technology, first-class equipment, first-class service wholeheartedly and friends from all walks of life sincere cooperation!

Cooperation Case

Applicable to construction, petroleum, chemical, electric power, metallurgy, urban gas, heat pipe network, Bridges, railways, vehicles, ships and other industrial fields and construction, infrastructure and other engineering fields. Complete testing equipment, strong technical force, can implement GB, ASTM, JIS, DIN and other standards.
