ASTM A572 High Strength Steel I Beam

Classification :

Item: ASTM A572 steel beam.
Technology: hot rolled.
Surface treatment: black, galvanized or primed.
Sizes: IPN & IPE european standard.
Web width: 42 - 215 mm.
Depth: 80 - 600 mm.
Web thickness: 3.8 - 21.6 mm.
Note: Special steel beam sizes are customized on order.

Bella@zglcmetal.com

RELATED PRODUCTS

ONLINE MESSAGE

Keywords:

H Beam

Product introduction

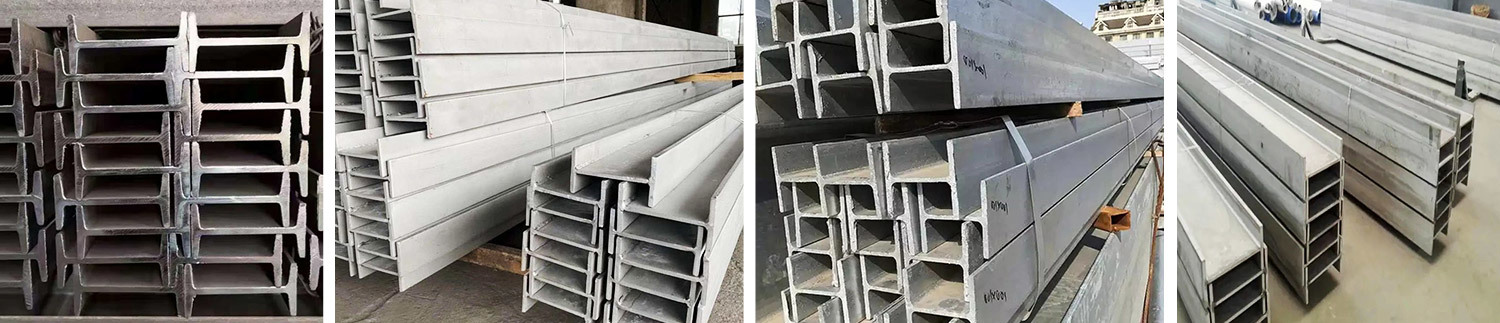

ASTM A572 High Strength Steel I Beam

ASTM A572-50 steel i beam - IPN dimension.

A572-50 steel i beam is widely used in construction & building applications for it can provide more strength per unit of weight. Its low content of alloy elements such as columbium & vanadium optimize the properties in strength and atmospheric corrosion. Owing to its high strength of 50,000 ksi yield strength, A572-50 steel I sections are increasingly replacing common carbon steel beam like A36 which should be thicker to satisfy the strength requirement.

ASTM 572 Steel I section is available in other grades like 42, 55 & 60. Please find the specific chemical components in the table below.

Product description:

Item: ASTM A572 steel beam.
Technology: hot rolled.
Surface treatment: black, galvanized or primed.
Sizes: IPN & IPE european standard.
Web width: 42 - 215 mm.
Depth: 80 - 600 mm.
Web thickness: 3.8 - 21.6 mm.
Note: Special steel beam sizes are customized on order.

Technical data

Chemical composition (heat analysis)
Item	Grade	Carbon, max, %	Manganese, max, %	Silicon, max, %	Phosphorus, max, %	Sulfur, max, %
A572 steel beams	42	0.21	1.35	0.40	0.04	0.05
	50	0.23	1.35	0.40	0.04	0.05
	55	0.25	1.35	0.40	0.04	0.05

Mechanical Properties
Item	Grade	Yield point, min, ksi [MPa]	Tensile strength, min, ksi [MPa]
A572 steel beams	42	42 [290]	60 [415]
	50	50 [345]	65 [450]
	55	55 [380]	70 [485]

ASTM A572 steel beam - IPE dimension
Item	Weight (kg/m)	Depth (mm)	Width (mm)	Web thickness (mm)	Flange thickness (mm)
IPE 80	6.0	80	46	3.8	5.2
IPE 100	8.1	100	55	4.1	5.7
IPE 120	10.4	120	64	4.4	6.3
IPE 140	12.9	140	73	4.7	6.9
IPE 160	15.8	160	82	5.0	7.4
IPE 180	18.8	180	91	5.3	8.0
IPE 200	22.4	200	100	5.6	8.5
IPE 220	26.2	220	110	5.9	9.2
IPE 240	30.7	240	120	6.2	9.8
IPE 270	36.1	270	135	6.6	10.2
IPE 300	42.2	300	150	7.1	10.7
IPE 330	49.1	330	160	7.5	11.5
IPE 360	57.1	360	170	8	12.7
IPE 400	66.3	400	180	8.6	13.6
IPE 450	79.1	450	190	9.4	14.6
IPE 500	90.7	500	200	10.2	16
IPE 550	106.0	550	210	11.2	17.2
IPE 600	124.4	600	220	12	19

ASTM A572 steel beam - IPN dimension
Item	Weight (kg/m)	Depth (mm)	Width (mm)	Web thickness (mm)	Flange thickness (mm)
IPN 80	5.9	80	42	3.9	5.9
IPN 100	8.3	100	50	4.5	6.8
IPN 120	11.1	120	58	5.1	7.7
IPN 140	14.3	140	66	5.7	8.6
IPN 160	17.9	160	74	6.3	9.5
IPN 180	21.9	180	82	6.9	10.4
IPN 200	26.2	200	90	7.5	11.3
IPN 220	31.1	220	98	8.1	12.2
IPN 240	36.2	240	106	8.7	13.1
IPN 260	41.9	260	113	9.4	14.1
IPN280	47.9	280	119	10.1	15.2
IPN 300	54.2	300	125	10.8	16.2
IPN320	61.0	320	131	11.5	17.3
IPN 340	68.0	340	137	12.2	18.3
IPN 360	76.1	360	143	13	19.5

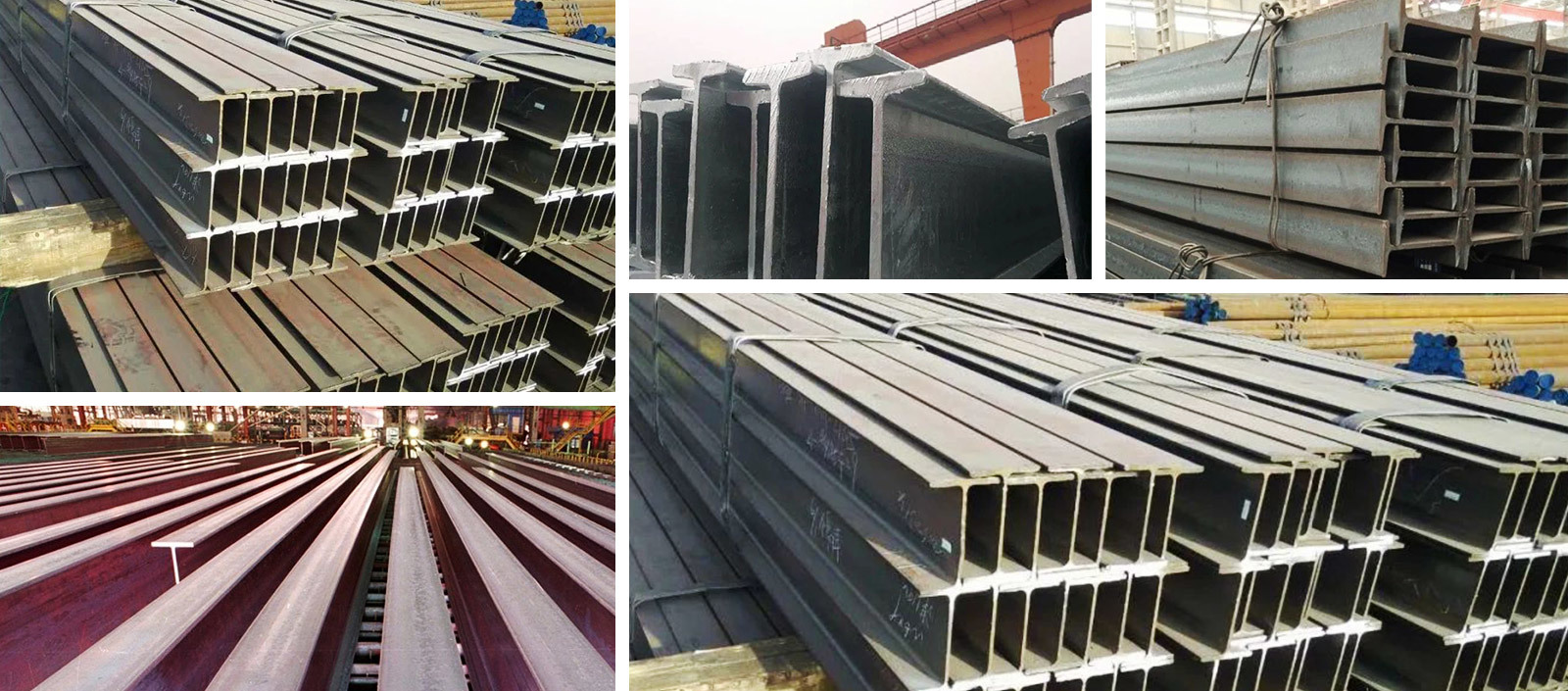

warehouse storage

The annual output of the factory is 400,000 tons, and the current inventory is more than 100,000 tons, which can greatly save the purchasing time of customers and ensure the production cycle and product quality of customers. We are a quality partner for domestic and foreign customers. At present, there are 14 steel production lines for processing, bending, coating, heat treatment, cutting, drilling, chamfering, conditioning, surface treatment and 13 sets of processing equipment.

Packing and shipping

Our main products are: carbon steel plate, carbon steel pipe, carbon steel coil, stainless steel plate, stainless steel coil, stainless steel profile, galvanized plate, galvanized coil, color coated steel coil, ppgi/ppgl and a wide range of high quality steel products.

Customer visit

Li Cheng (Shandong) Metal Materials Co., LTD. has the right to import and export, and its products are exported to more than 20 countries in Asia, Africa, Europe, North America and other regions. Complete processing equipment, perfect quality assurance system, well received by customers.We are willing to first-class technology, first-class equipment, first-class service wholeheartedly and friends from all walks of life sincere cooperation!

Cooperation Case

Applicable to construction, petroleum, chemical, electric power, metallurgy, urban gas, heat pipe network, Bridges, railways, vehicles, ships and other industrial fields and construction, infrastructure and other engineering fields. Complete testing equipment, strong technical force, can implement GB, ASTM, JIS, DIN and other standards.
